Elite-grade EPDM hexagon tiles with interlocking connectors for a seamless, taut fit.

EPDM Rubber Hexagon Gym Tile

Superstrata Hex

Distinctive hexagon flooring for high-impact gym environments

25mm thickness
EPDM surface top
Interlocking connectors
Versatile application
Overview
← Part of the Heavy Duty Free Weights System

Distinctive hexagon flooring with elite-grade performance

Superstrata Hex is a premium 25mm gym flooring tile designed for fitness spaces that need serious performance and a distinctive interior statement. Its hexagon format creates a unique architectural finish, while interlocking connectors hold each tile in a seamless, taut fit across demanding gym environments.

Built for free weights areas, heavy equipment zones, and high-footfall training spaces, Hex combines superior shock absorption with robust subfloor protection. The smooth, velvet-like top surface is constructed from premium EPDM rubber, bonded to a dense SBR rubber base for locked-in strength, durability, and long-term everyday gym use.

Specified for gyms, studios, and commercial fitness environments that need a floor surface that looks different, performs hard, and stands up to repeated impact.

Request a Specification Pack →Request Samples↓ Download TDS

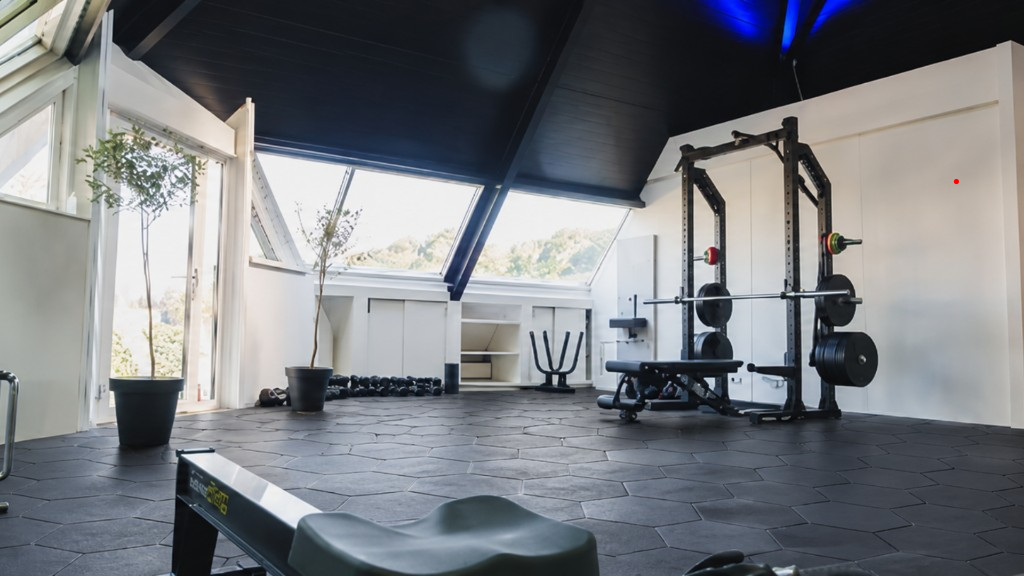

Superstrata Hex black hexagon tiles installed in a commercial gym with free weights and natural light
25mm
Overall thickness
Hexagon
Tile format
950kg/m³
Density
1 year
Warranty
Colours

Available colours

Black
Coloured Fleck (Blue/Red/Green)

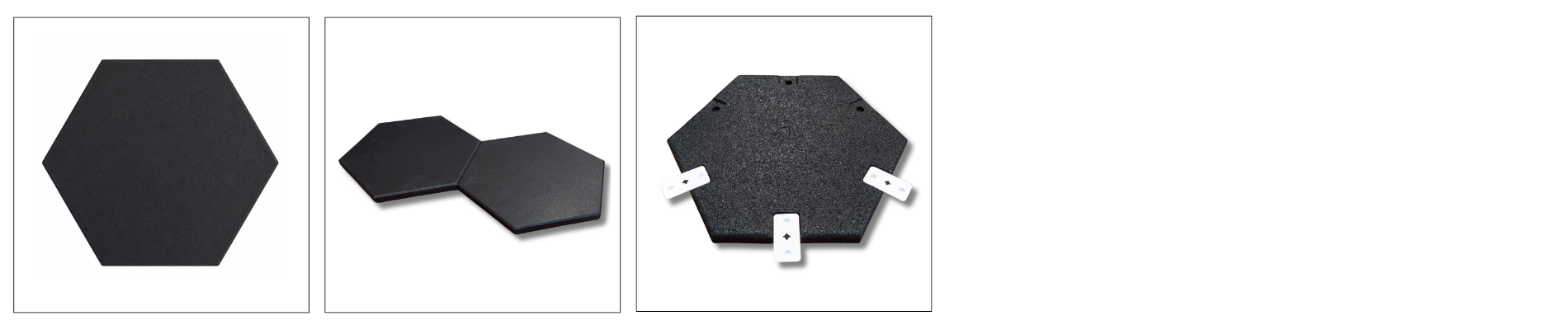

Superstrata Hex tile: top view, interlocking fit, and underside with connectors

Recommended applications

Free weights areas✓
Heavy equipment zones✓
High-footfall gym areas✓
Functional training zones✓
Commercial gym flooring✓
Design-led fitness interiors✓
General circulation / walkways✓
Higher-impact training areas✓
Specifications

Technical data

ProductSuperstrata Hex
FormatHexagon tile
Thickness25mm overall
Surface thickness2mm
Base thickness23mm
Side length20.5cm
Diagonal length41cm
Weight2.5kg per tile
Surface materialPremium EPDM rubber
Base materialSBR rubber
Density950kg/m³
Installation methodInterlocking connectors
Recommended useFree weights, heavy equipment, high-footfall gym zones, higher-impact areas
Warranty1 year

Specification documents

Get the full Technical Data Sheet, NBS specification clause, and installation guidance for Superstrata Hex.

Enter your email to receive the specification pack:

Includes: Technical Data Sheet (PDF) · NBS Specification Clause · Installation Guide · Maintenance Schedule

Tile construction

EPDM surface 2mm premium EPDM rubber top — smooth, velvet-like finish.
SBR base 23mm dense SBR rubber base. Interlocking connector system for a taut, seamless fit.
System solution
Heavy Duty Free Weights System

Hex delivers a design-led alternative within heavy-duty gym zones. Pair with Shield acoustic underlay where building regulations require additional impact sound reduction.

View Heavy Duty System →
Zone planning

The right product for every zone

Every gym has different zones with different demands. Here's how Superstrata products map across a typical facility.

Free weights & design-led zones
Hex 25mm

Hexagon EPDM tiles for distinctive interiors, free weights, and higher-impact training areas.

Functional training
Pulse 20mm

Versatile square tiles for CrossFit, functional rigs, and moderate free weights.

Olympic lifting & power racks
Titan 30mm / 40mm

Maximum impact protection for deadlifts, barbell drops, and power racks.

Studio & group exercise
Trace 7mm

Comfort, colour, and puzzle installation for yoga, Pilates, and studios.

More from the range

Hex
25mm hexagon tile
Titan
30mm · 40mm tile
Pulse
20mm tile
Shield
10mm · 20mm acoustic underlay
Specify Hex

Need the full specification pack for Superstrata Hex?

Specification packs include full technical data sheets, NBS clauses, sample boards, and zone planning guidance.

Request a Specification Pack →Request Samples
Why Specifiers Choose Superstrata

Performance with a distinctive hexagon format

Hex combines elite-grade EPDM surfacing with a dense SBR base — delivering shock absorption, subfloor protection, and an architectural floor pattern for commercial gyms that want to stand apart.

Hexagon Format

A distinctive architectural finish with interlocking connectors for a seamless, taut fit across demanding gym environments.

Premium EPDM Surface

2mm EPDM top layer with a smooth, velvet-like finish — available in black or coloured fleck.

25mm Overall Thickness

Built for free weights, heavy equipment zones, and high-footfall training areas with 950kg/m³ density.

Interlocking Connectors

Connector-based installation holds each tile securely for long-term commercial gym use.
