The broadest application range in the portfolio. Specified for functional training, boutique studios, and multi-use fitness spaces.

20mm Performance Rubber Gym Tile

Superstrata Pulse

Versatile performance for high-intensity training environments

1000mm × 1000mm tile
20mm
EF1 fire rated
CFL-S2 available
10 colours
In stock
Overview
← Part of the Heavy Duty Free Weights System

Versatile performance for high-intensity training

The mid-range workhorse. Pulse covers the broadest application range in the portfolio, serving the fast-growing functional fitness and boutique studio market. Withstands weight drops up to 140kg with 61% shock absorption and 21dB sound reduction.

Available in ten colours — from premium black through to coloured EPDM fleck, natural stone effect, and textured pattern finishes. The widest colour range in the Superstrata portfolio.

Connector system, ramps, and corners included. Pair with Superstrata Shield for 28dB acoustic compliance. CFL-S2 fire-rated variant on request. Backed by a 10-year warranty.

Request a Specification Pack →Request Samples↓ Download TDS

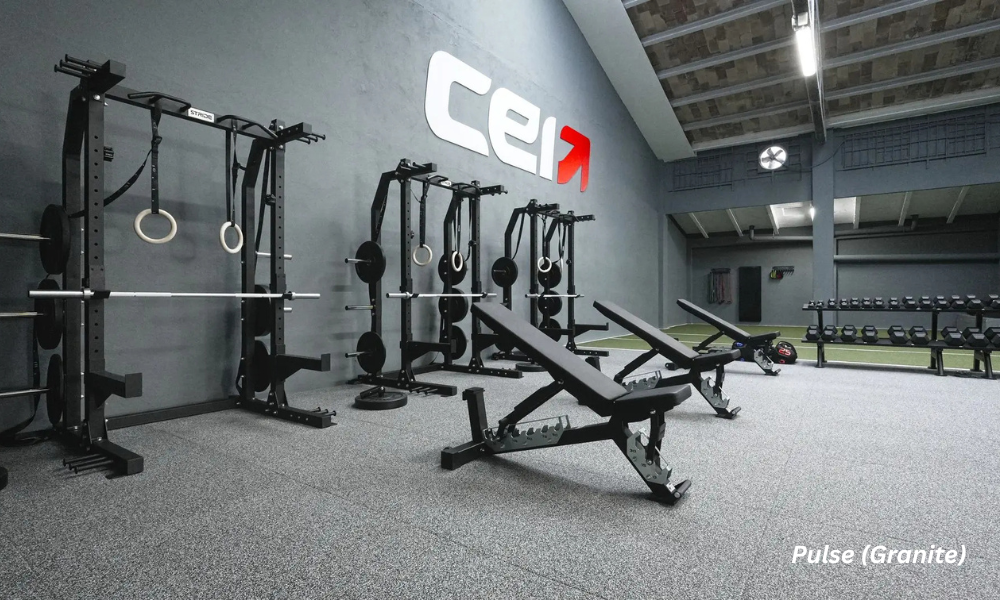

Superstrata Pulse in Beach

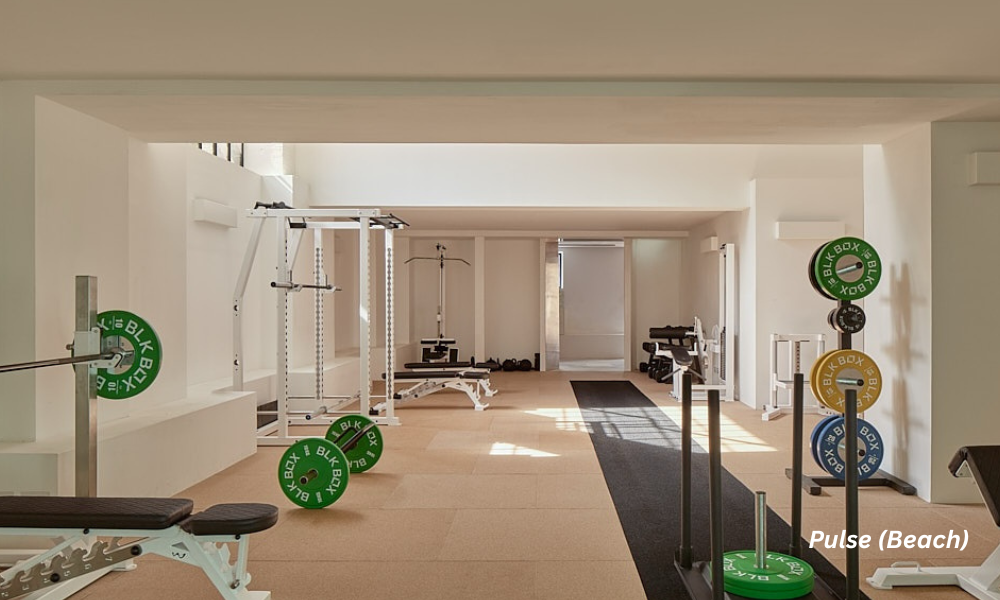

Superstrata Pulse in Granite
140kg
Max weight drop
61%
Shock absorption
21dB
Sound reduction
10 year
Warranty

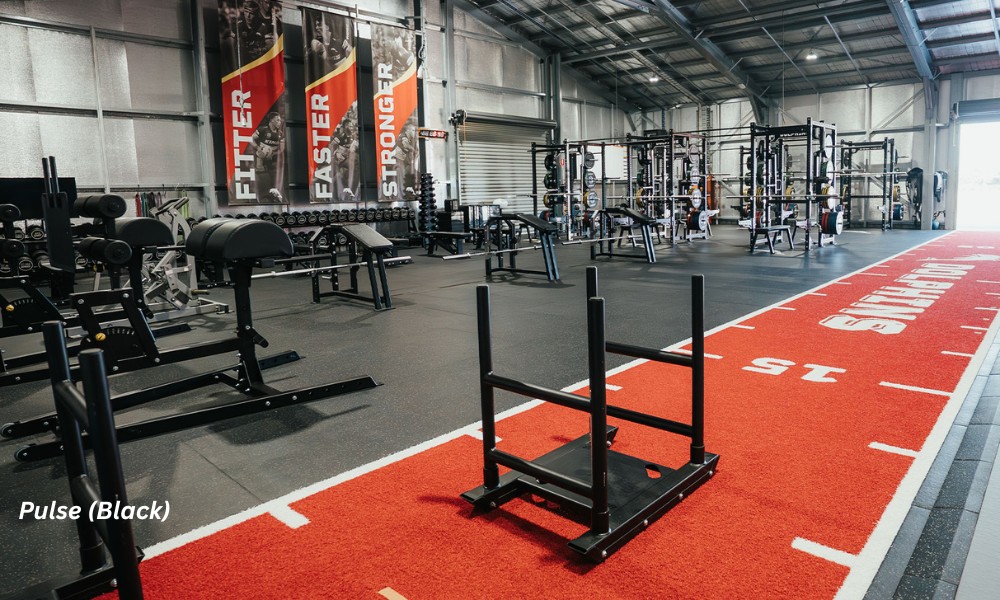

Superstrata Pulse in Snowflake

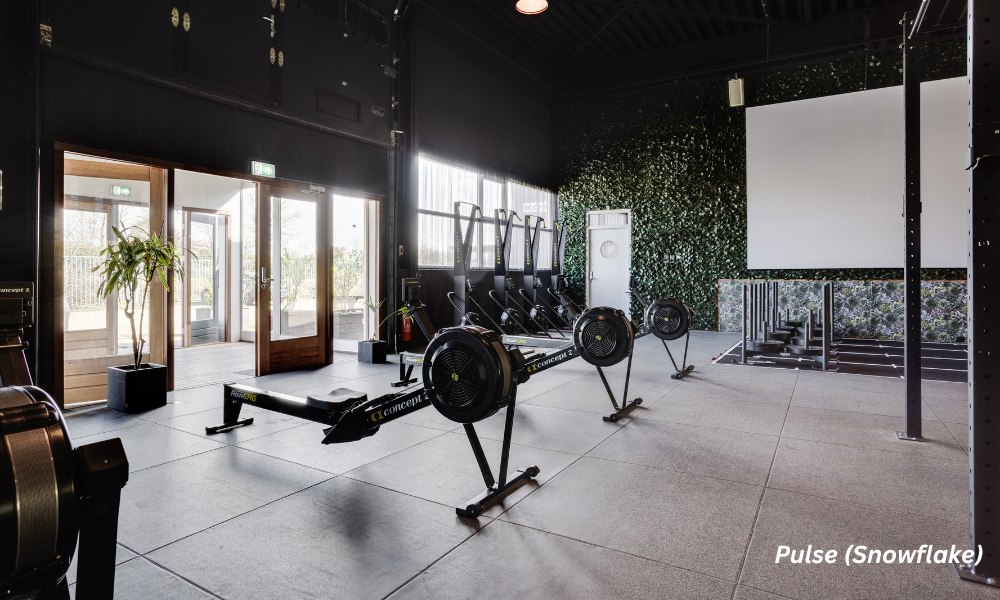

Superstrata Pulse in Black
Colours

Available finishes

Black
Blue
Green
Red
Yellow
Light Grey
Granite
Beach
Snowflake
Oak

Fleck colours (Blue, Green, Red, Yellow, Light Grey) have 15% coloured EPDM top layer. Granite, Beach, Snowflake, and Oak are premium finishes.

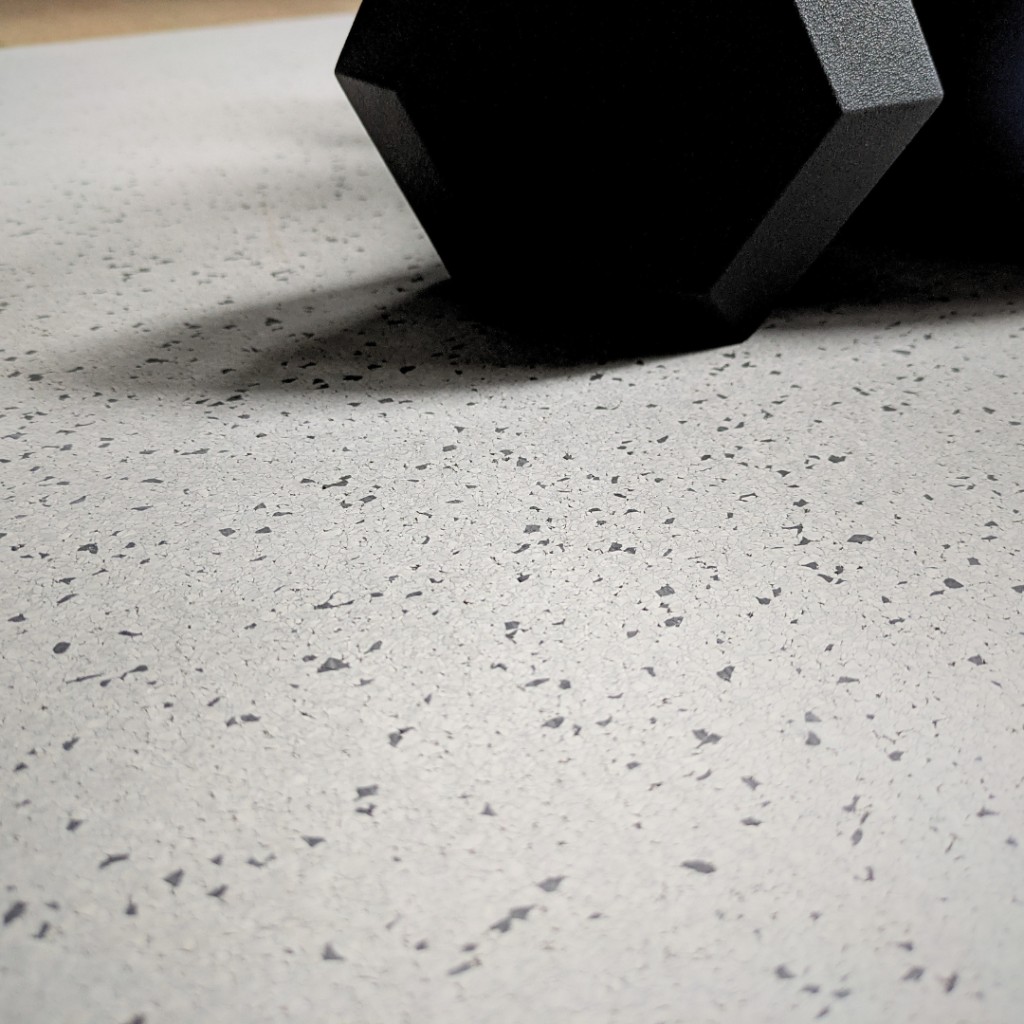

Pulse finish close-up in light grey fleck

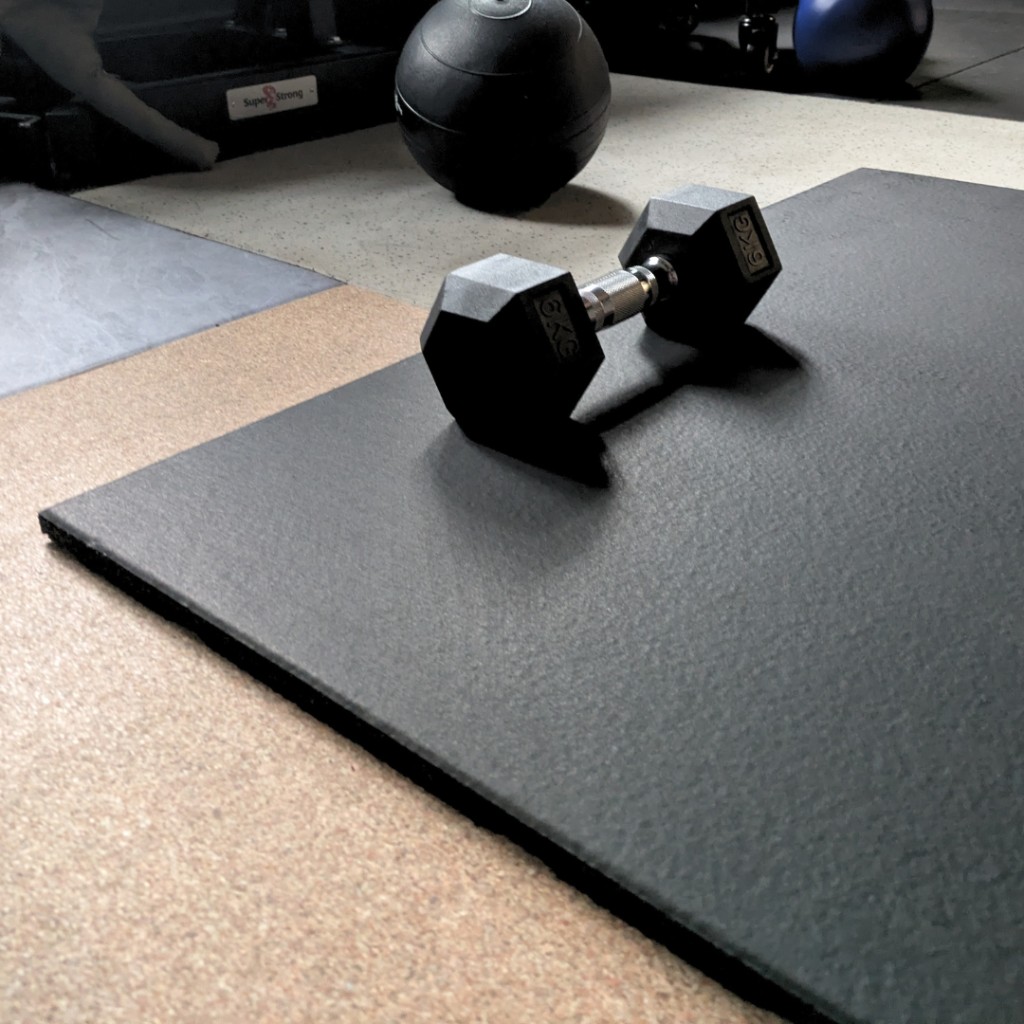

Pulse finish black tile with dumbbell

Recommended applications

CrossFit / functional training✓
Hyrox training zones✓
Boutique fitness studios✓
Free weights (moderate)✓
Group exercise spaces✓
Strength & conditioning✓
Cardio areas✓
Olympic lifting (heavy)—
Deadlift drop zones (heavy)—
Specifications

Technical data

ProductSuperstrata Pulse 20mm
Format1000mm × 1000mm tile
Thickness20mm
Weight per tile18kg
Max weight drop140kg
Warranty10 years
Top layer density~1,050 kg/m³
Base layer density~1,000 kg/m³
Shock absorption61% (EN 14808)
Vertical deformation5.0mm (EN 14809)
Sound insulation21dB. 28dB with Shield 20mm.
Head injury criteria1.3m (EN 1177)
Fire classificationEF1 (EN 13501-1). CFL-S2 on request.
Abrasion resistance≤560 (EN ISO 5470-1)
Hardness55–75 Shore A (ISO 868)
Slip resistanceDry slip resistant
Thermal resistance0.16 m²·K/W
Tolerances±1.5%
InstallationConnector system (no adhesive). Ramps and corners available.
REACH / AntistaticYes / Yes

Specification documents

Get the full Technical Data Sheet, NBS specification clause, and installation guide for Superstrata Pulse.

Enter your email to receive the specification pack:

Includes: Technical Data Sheet (PDF) · NBS Specification Clause · Installation Guide · Maintenance Schedule

Tile construction

Top layer High-density vulcanised rubber (~1,050 kg/m³). Up to 2.5mm thick. Easy-clean, almost closed surface.
Base layer 100% recycled SBR rubber (~1,000 kg/m³). High-density shock absorbing layer.
Bottom pattern Engineered stud pattern reduces impact sound and vibration. Holes for connector system.

Sound insulation performance

Tested to EN ISO 10140-3 on 140mm reinforced concrete slab. Laboratory: Daidalos Peutz (NBN EN ISO 17025).

21dB
20mm tile alone
24dB
30mm tile alone
28dB
20mm tile + Shield 20mm

Connector system

Free-floating

No adhesive required. Polypropylene connectors lock tiles at 20cm intervals.

7 per m² tile

1000×1000mm: 7 connectors. 500×1000mm: 5. Ramps and corners for edges.

Easy to cut

Cut with hollow knife. Rubber hammer to close joints. Lay on existing floor.

System solution
Pair with Superstrata Shield

For upper-storey gyms and noise-sensitive installations, add Shield composite foam underlay beneath this product. The combined system achieves up to 28dB impact sound reduction, tested to EN ISO 10140-3.

View Shield →
Zone planning

The right product for every zone

Every gym has different zones with different demands. Here's how Superstrata products map across a typical facility.

Free weights & Olympic lifting
Titan 30mm / 40mm

Maximum impact protection. Deadlifts, barbell drops, power racks. 200–250kg drop rating.

Functional & CrossFit zones
Pulse 20mm

Versatile performance. Kettlebells, dumbbells, box jumps, battle ropes. 140kg drop rating.

Cardio & circulation areas
Stride 8mm / 10mm

Seamless roll coverage. Treadmills, bikes, rowing machines, walkways. Professional finish.

Upper-storey & acoustic
Shield + Pulse or Titan

Acoustic compliance system. Mixed-use buildings, hotels, residential. Up to 28dB reduction.

More from the range

Titan
30mm · 40mm tile
Pulse
20mm tile
Stride
8mm · 10mm roll
Shield
10mm · 20mm acoustic underlay
Specify Pulse

Need the full specification pack for Superstrata Pulse?

Specification packs include full technical data sheets, NBS clauses, sample boards, and zone planning guidance.

Request a Specification Pack →Request Samples
Why Specifiers Choose Superstrata

Engineered for the hardest-working floors in sport

Superstrata products are designed around the actual loads, impacts, and traffic patterns of commercial fitness environments — not pedestrian corridors.

200–250kg Drop Rated

Titan is rated for repeated barbell drops up to 250kg. The compound formulation absorbs and disperses impact energy without surface crumbling or edge lifting.

10-Year Warranty

Every product is backed by a 10-year warranty against manufacturing defects. No mandatory installer requirement — any competent contractor qualifies.

Batch Consistency

Colour, density, and dimensional tolerances held to the same standard across every production run. Multi-site rollouts and phased installations match.

15,000m² UK Stock

Standard orders dispatched within 48 hours from UK stock. Larger project volumes available direct from European manufacturing with agreed lead times.
