Engineered for maximum impact environments. The specification choice for free weights zones, S&C suites, and high-footfall commercial gyms.

30mm Heavy-Duty Rubber Gym Tile

Superstrata Titan

Heavyweight performance for maximum impact protection

500mm × 1000mm tile
30mm · 40mm
EF1 fire rated
CFL-S2 available
In stock
Overview
← Part of the Heavy Duty Free Weights System

Heavyweight performance for maximum impact protection

The flagship product in the Superstrata range. Engineered for the heaviest impact environments where equipment drops, loaded barbells, and intense daily use demand maximum thickness and shock absorption. The 30mm variant withstands drops up to 200kg; the 40mm up to 250kg.

The 500mm × 1000mm format keeps tiles manageable — a 40mm tile weighs 16kg, making single-person installation practical. Connector system, ramps, and corners available at all thicknesses.

Manufactured in Europe. CFL-S2 fire-rated variant available on request. Backed by a 10-year warranty.

Request a Specification Pack →Request Samples↓ Download TDS

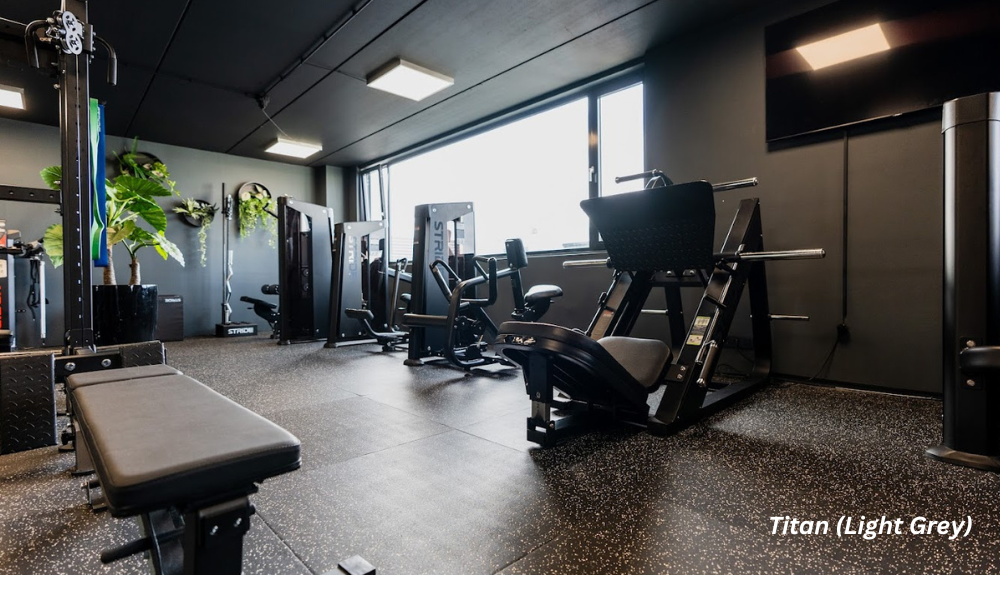

Superstrata Titan in Black

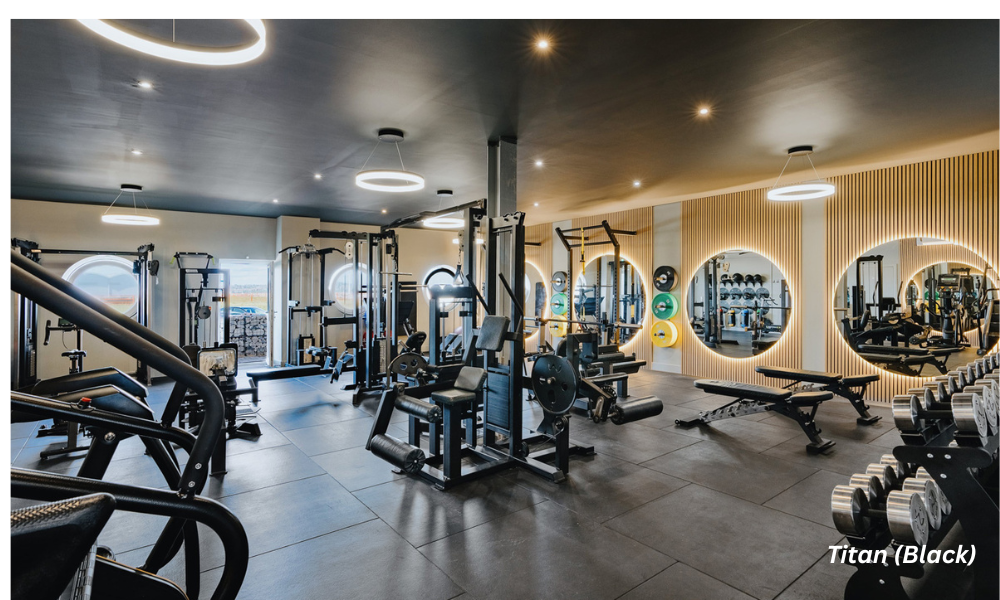

Superstrata Titan in Light Grey
200–250kg
Max weight drop
61%
Shock absorption
24dB
Sound reduction (30mm)
10 year
Warranty

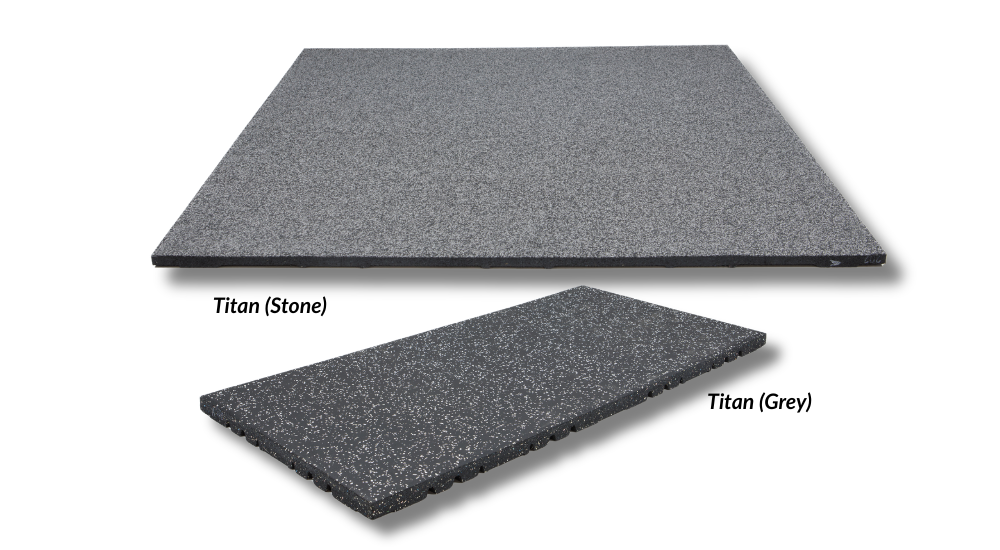

Superstrata Titan Stone and Grey finish samples

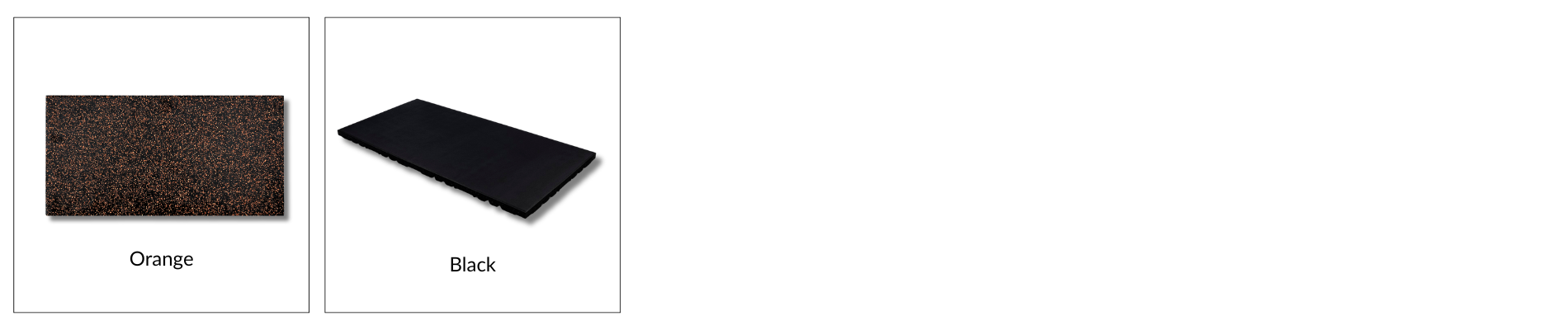

Superstrata Titan Orange finish sample
Colours

Available finishes

30mm thickness

Black
Light Grey
Stone

40mm thickness

Black
Light Grey
Orange

Recommended applications

Olympic lifting platforms✓
Free weights / deadlift zones✓
Power racks / squat areas✓
Heavy dumbbell zones✓
Sled push areas✓
Functional training✓
CrossFit boxes✓
Cardio / treadmills—
Circulation / walkways—
Specifications

Technical data

ProductSuperstrata Titan
Format500mm × 1000mm tile
Thicknesses30mm · 40mm
Weight per tile30mm: 12kg · 40mm: 16kg
Max weight drop30mm: 200kg · 40mm: 250kg
Warranty10 years
Top layer density~1,050 kg/m³
Base layer density~1,000 kg/m³
Shock absorption61% (EN 14808)
Vertical deformation5.0mm (EN 14809)
Sound insulation30mm: 24dB reduction
Head injury criteria1.5m at 50mm (EN 1177)
Fire classificationEF1 (EN 13501-1). CFL-S2 on request.
Abrasion resistance≤560 (EN ISO 5470-1)
Hardness55–75 Shore A (ISO 868)
Slip resistanceDry slip resistant
Thermal resistance0.16 m²·K/W
Tolerances±1.5%
InstallationConnector system (no adhesive). Ramps and corners available.
REACH / AntistaticYes / Yes

Specification documents

Get the full Technical Data Sheet, NBS specification clause, and installation guide for Superstrata Titan.

Enter your email to receive the specification pack:

Includes: Technical Data Sheet (PDF) · NBS Specification Clause · Installation Guide · Maintenance Schedule

Tile construction

Top layer High-density vulcanised rubber (~1,050 kg/m³). Up to 2.5mm thick. Easy-clean, almost closed surface.
Base layer 100% recycled SBR rubber (~1,000 kg/m³). High-density shock absorbing layer.
Bottom pattern Engineered stud pattern reduces impact sound and vibration. Holes for connector system.

Sound insulation performance

Tested to EN ISO 10140-3 on 140mm reinforced concrete slab. Laboratory: Daidalos Peutz (NBN EN ISO 17025).

21dB
20mm tile alone
24dB
30mm tile alone
28dB
20mm tile + Shield 20mm

Connector system

Free-floating

No adhesive required. Polypropylene connectors lock tiles at 20cm intervals.

7 per m² tile

1000×1000mm: 7 connectors. 500×1000mm: 5. Ramps and corners for edges.

Easy to cut

Cut with hollow knife. Rubber hammer to close joints. Lay on existing floor.

System solution
Pair with Superstrata Shield

For upper-storey gyms and noise-sensitive installations, add Shield composite foam underlay beneath this product. The combined system achieves up to 28dB impact sound reduction, tested to EN ISO 10140-3.

View Shield →
Zone planning

The right product for every zone

Every gym has different zones with different demands. Here's how Superstrata products map across a typical facility.

Free weights & Olympic lifting
Titan 30mm / 40mm

Maximum impact protection. Deadlifts, barbell drops, power racks. 200–250kg drop rating.

Functional & CrossFit zones
Pulse 20mm

Versatile performance. Kettlebells, dumbbells, box jumps, battle ropes. 140kg drop rating.

Cardio & circulation areas
Stride 8mm / 10mm

Seamless roll coverage. Treadmills, bikes, rowing machines, walkways. Professional finish.

Upper-storey & acoustic
Shield + Pulse or Titan

Acoustic compliance system. Mixed-use buildings, hotels, residential. Up to 28dB reduction.

More from the range

Titan
30mm · 40mm tile
Pulse
20mm tile
Stride
8mm · 10mm roll
Shield
10mm · 20mm acoustic underlay
Specify Titan

Need the full specification pack for Superstrata Titan?

Specification packs include full technical data sheets, NBS clauses, sample boards, and zone planning guidance.

Request a Specification Pack →Request Samples
Why Specifiers Choose Superstrata

Engineered for the hardest-working floors in sport

Superstrata products are designed around the actual loads, impacts, and traffic patterns of commercial fitness environments — not pedestrian corridors.

200–250kg Drop Rated

Titan is rated for repeated barbell drops up to 250kg. The compound formulation absorbs and disperses impact energy without surface crumbling or edge lifting.

10-Year Warranty

Every product is backed by a 10-year warranty against manufacturing defects. No mandatory installer requirement — any competent contractor qualifies.

Batch Consistency

Colour, density, and dimensional tolerances held to the same standard across every production run. Multi-site rollouts and phased installations match.

15,000m² UK Stock

Standard orders dispatched within 48 hours from UK stock. Larger project volumes available direct from European manufacturing with agreed lead times.
