Engineered for lower-impact studio and cardio environments. The specification choice for group exercise areas, yoga and Pilates studios, aerobics spaces, and cardio suites.

7mm High-Density Rubber Puzzle Tile

Superstrata Trace

Studio performance with comfort, colour, and easy installation

1000mm × 1000mm tile
7mm
Cfl-s2 fire rated
15dB acoustic isolation
In stock
← Part of the Studio & Cardio Flooring System

Studio performance with comfort, colour, and easy installation

A high-density rubber composite tile for lower-impact fitness environments where comfort, grip, and design flexibility matter. Trace is designed for areas that do not require floor protection from heavy free weights, making it ideal for group exercise studios, yoga and Pilates spaces, aerobics rooms, and cardio suites.

The 7mm construction provides excellent shock absorption and a smooth, high-comfort surface for movement-based training. It also protects the subfloor against heavy static equipment such as treadmills, bikes, and rowers, while remaining suitable for light free-weight use.

Manufactured using two-layer co-vulcanisation technology, Trace combines a non-slip texture-effect rubber top layer with a rubber shock-absorbent base. Interlocking puzzle edges allow for a clean and easy fit, with matching corner and edge pieces available.

Conforms to EN 14041. Backed by a 2-year warranty.

Request a Specification Pack →Request SamplesInstallation sheet↓ Download TDS

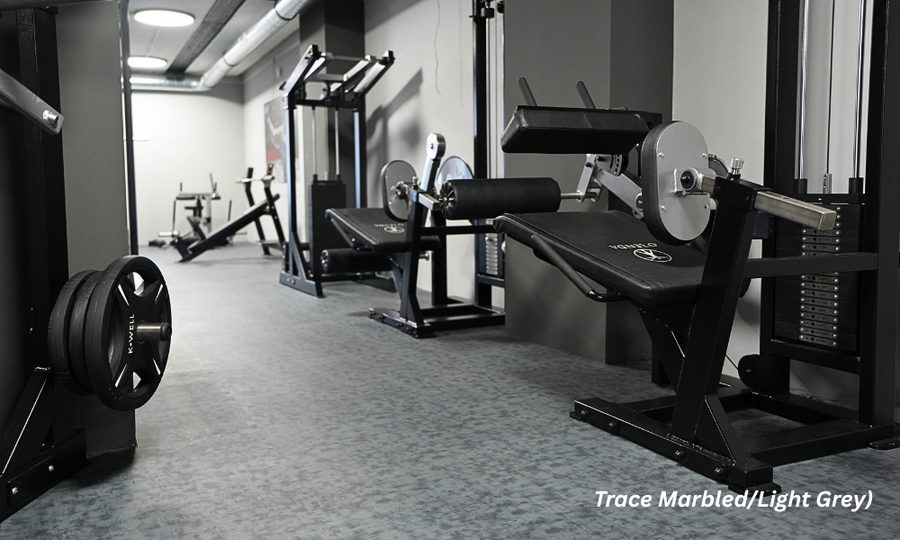

Superstrata Trace marbled light grey installed in a commercial gym

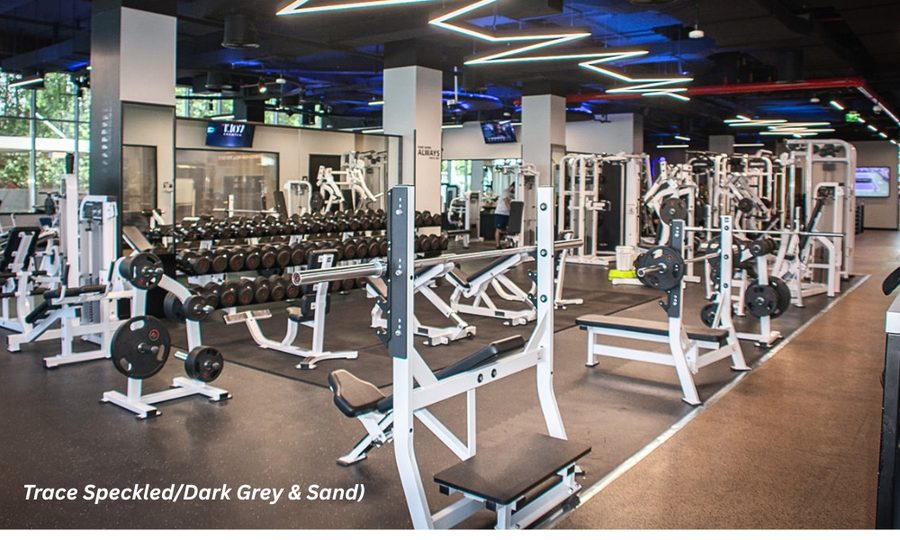

Superstrata Trace speckled dark grey and sand installed in a commercial gym
15dB
Acoustic isolation
80–110
Slip resistance
7mm
Tile thickness
2 year
Warranty

Available colours

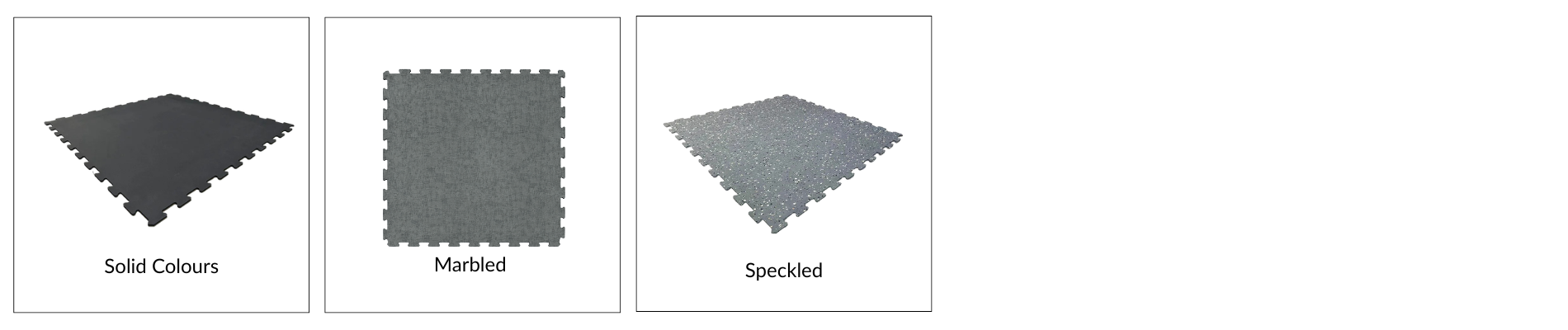

Superstrata Trace finish types: solid, marbled, and speckled interlocking tiles

Solid colours

Grey
Black
Ochre
Dark Brown
Violet
Ocean Blue

Marbled colours

Light Grey
Dark Grey
Ochre Wood
Dark Brown

Speckled colours

Dark Grey
Concrete
Sand
Grey & Black

Recommended applications

Group exercise studios
Yoga & Pilates
Aerobics rooms
Cardio suites
Treadmills, bikes & rowers
Light free-weight use
Olympic lifting / heavy drops
Free weights zones (heavy)

Technical data

ProductSuperstrata Trace
ConstructionTwo-layer co-vulcanisation. Non-slip texture-effect rubber top layer; rubber shock-absorbent base.
Tile dimensions1000 × 1000mm
Tile thickness7mm
ProfilePuzzle (interlocking)
Tile weight10.5kg
Density1500 kg/m³ (UNE-53526)
Slip resistance80–110 (EN 13036-4)
Impact resistanceEN 1517
Fire certificationCF1-S2
Acoustic isolation15dB (ISO 10140)
ClassificationEN ISO 10874
Installation methodInterlocking
Warranty2 years

Specification documents

Get the full Technical Data Sheet, NBS specification clause, and installation guide for Superstrata Trace.

Enter your email to receive the specification pack:

Includes: Technical Data Sheet (PDF) · NBS Specification Clause · Installation Guide · Maintenance Schedule

Tile construction

Top layer Non-slip texture-effect rubber compound (co-vulcanised).
Base layer Rubber shock-absorbent base. Puzzle profile with matching corner and edge pieces.
System solution
Studio & Cardio Flooring System

Trace is specified as the surface layer for lower-impact studio and cardio zones. Pair with Shield acoustic underlay where building regulations require additional impact sound reduction.

View Studio System →

The right product for every zone

Every gym has different zones with different demands. Here's how Superstrata products map across a typical facility.

Studio & group exercise
Trace 7mm

Comfort, colour, and puzzle installation. Yoga, Pilates, aerobics, and cardio suites.

Cardio & circulation (roll)
Stride 8mm / 10mm

Seamless roll coverage for large open decks and walkways.

Functional training
Pulse 20mm

Higher impact rating for kettlebells, functional rigs, and moderate free weights.

Free weights & Olympic lifting
Titan 30mm / 40mm

Maximum impact protection for deadlifts, barbell drops, and power racks.

More from the range

Trace
7mm puzzle tile
Stride
8mm · 10mm roll
Pulse
20mm tile
Shield
10mm · 20mm acoustic underlay

Need the full specification pack for Superstrata Trace?

Specification packs include full technical data sheets, NBS clauses, sample boards, and zone planning guidance.

Why Specifiers Choose Superstrata

Designed for movement, comfort, and studio aesthetics

Trace delivers the grip, cushioning, and colour range studio operators expect — without the thickness and cost of heavy-duty free-weights flooring.

15dB Acoustic Isolation

Tested to ISO 10140. Suitable for studio and cardio environments where impact sound control supports mixed-use and multi-storey compliance.

2-Year Warranty

Backed by a 2-year warranty against manufacturing defects. Interlocking puzzle installation with matching edge and corner pieces.

14 Finish Options

Solid, marbled, and speckled colourways for brand-led studio design — from neutral greys through to Ocean Blue and Ochre Wood.

In Stock

Standard orders dispatched from UK stock. Contact the specification team for project volumes and lead times.
