Impact noise reduction for upper-storey gyms and mixed-use buildings. The system solution when Building Regulations Part E compliance is required.

Acoustic Underlay System

Superstrata Shield

Acoustic isolation for noise-sensitive installations

Composite foam roll (2m wide)

10mm · 20mm

Up to 28dB reduction

Overview

← Part of the Acoustic & Anti-Shock System

Acoustic isolation for noise-sensitive installations

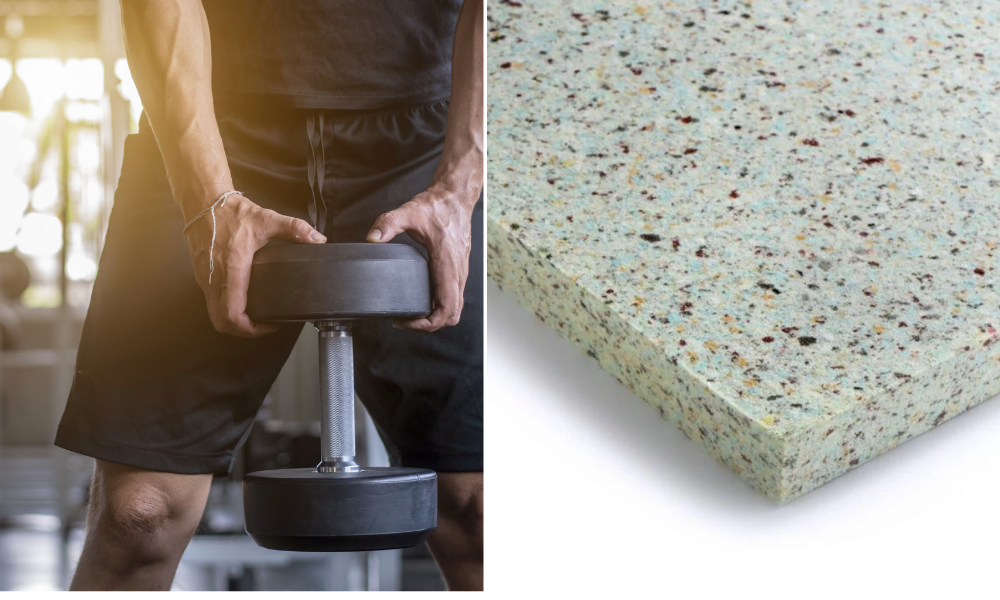

Shield is a composite foam acoustic underlay installed beneath Titan or Pulse as a system solution where sound transmission must meet Building Regulation requirements. When paired with Superstrata Pulse 20mm, the system achieves 28dB impact sound reduction.

Particularly critical for upper-storey gyms in mixed-use buildings, hotels, and residential developments where impact noise from dropped weights and high-intensity training must be controlled.

Sold as a complement to the primary floor covering. Available in 10mm and 20mm. Backed by a 10-year warranty.

Request a Specification Pack →Request Samples ↓ Download TDS

28dB

System reduction

200 kg/m³

Density

20m²

Per roll

10 year

Warranty

Acoustic performance

Certified noise reduction

Tested to EN ISO 10140-3 on 140mm reinforced concrete slab. Laboratory: Daidalos Peutz, accredited to NBN EN ISO 17025.

Sound insulation performance

Tested to EN ISO 10140-3 on 140mm reinforced concrete slab. Laboratory: Daidalos Peutz (NBN EN ISO 17025).

21dB

20mm tile alone

24dB

30mm tile alone

28dB

20mm tile + Shield 20mm

System build-up

Surface tile Superstrata Pulse 20mm or Titan 30mm/40mm 20–40mm

Shield underlay Composite foam acoustic layer (200 kg/m³) 10 or 20mm

Subfloor Concrete slab or existing floor covering

Specifications

Technical data

Product	Superstrata Shield

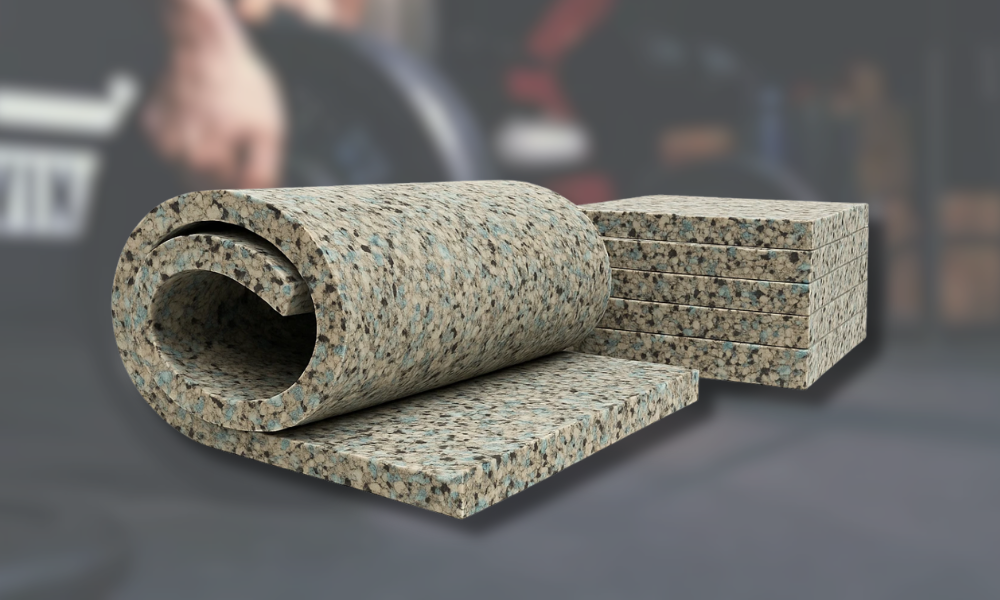

Format	Roll, 2m wide × 10m
Thicknesses	10mm · 20mm
Coverage per roll	20m²
Warranty	10 years
Material	Composite foam, 200 kg/m³
Acoustic performance	Pulse 20mm + Shield 20mm = 28dB
Test standard	EN ISO 10140-3
Test laboratory	Daidalos Peutz (NBN EN ISO 17025)
Application	Sub-floor acoustic isolation beneath Titan or Pulse
Installation	Laid on subfloor. Tiles installed on top with connector system.

Specification documents

Get the acoustic test report, system build-up guidance, and installation details for Superstrata Shield.

Enter your email to receive the specification pack:

Includes: Acoustic Test Report (Daidalos Peutz) · System Build-Up Guide · Installation Guide

Zone planning

The right product for every zone

Every gym has different zones with different demands. Here's how Superstrata products map across a typical facility.

Free weights & Olympic lifting

Titan 30mm / 40mm

Maximum impact protection. Deadlifts, barbell drops, power racks. 200–250kg drop rating.

Functional & CrossFit zones

Pulse 20mm

Versatile performance. Kettlebells, dumbbells, box jumps, battle ropes. 140kg drop rating.

Cardio & circulation areas

Stride 8mm / 10mm

Seamless roll coverage. Treadmills, bikes, rowing machines, walkways. Professional finish.

Upper-storey & acoustic

Shield + Pulse or Titan

Acoustic compliance system. Mixed-use buildings, hotels, residential. Up to 28dB reduction.

Specify Shield

Need acoustic test data for your project?

Specification packs include full technical data sheets, NBS clauses, sample boards, and zone planning guidance.

Request a Specification Pack →Request Samples

Why Specifiers Choose Superstrata

Engineered for the hardest-working floors in sport

Superstrata products are designed around the actual loads, impacts, and traffic patterns of commercial fitness environments — not pedestrian corridors.

200–250kg Drop Rated

Titan is rated for repeated barbell drops up to 250kg. The compound formulation absorbs and disperses impact energy without surface crumbling or edge lifting.

10-Year Warranty

Every product is backed by a 10-year warranty against manufacturing defects. No mandatory installer requirement — any competent contractor qualifies.

Batch Consistency

Colour, density, and dimensional tolerances held to the same standard across every production run. Multi-site rollouts and phased installations match.

15,000m² UK Stock

Standard orders dispatched within 48 hours from UK stock. Larger project volumes available direct from European manufacturing with agreed lead times.
